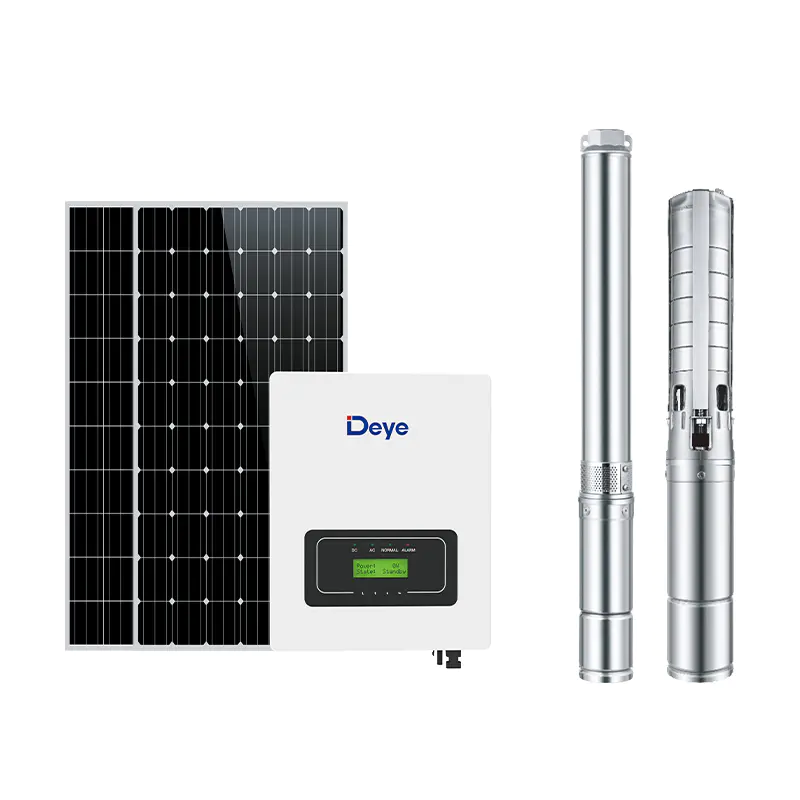

Deyeb DEYEB WP-4-HYB solar water pumps

← Back to catalogue

DEYEB WP-4-HYB

4-inch hybrid AC/DC solar submersible water pump

Solar Water Pumps4" hybrid AC/DC

Request a price

Technical specifications

4"AC/DC Plastic Impeller Solar Water Pump

DEYEB 4 1100- 7-105
Q	m³/h	0	1.0	2.0	3.0	4.0	5.0	6.0	7.0
L/min	0	17	33	50	67	84	100	117
US.GPM	0	4.5	8.7	13.2	17.7	22.2	26.4	30.9
H	m	105	97	90	76	62	46	30	9
DEYEB 4 1500- 7-145
Q	m³/h	0	1.0	2.0	3.0	4.0	5.0	6.0	7.0
L/min	0	17	33	50	67	84	100	117
US.GPM	0	4.5	8.7	13.2	17.7	22.2	26.4	30.9
H	m	145	133	113	92	71	54	36	16
DEYEB 4 2200- 7-213
Q	m³/h	0	1.0	2.0	3.0	4.0	5.0	6.0	7.0
L/min	0	17	33	50	67	84	100	117
US.GPM	0	4.5	8.7	13.2	17.7	22.2	26.4	30.9
H	m	213	190	180	145	122	97	48	12

4"AC/DC Plastic Impeller Solar Water Pump

DEYEB 4 1100- 14-62
Q	m³/h	0	2.4	4.2	6.0	7.8	9.6	11.4	13.2
L/min	0	40	70	100	130	160	190	220
US.GPM	0	10.6	18.5	26.4	34.3	42.3	50.2	58.1
H	m	62	55	50	44	33	22	12	4
DEYEB 4 1500- 14-77
Q	m³/h	0	2.4	4.2	6.0	7.8	9.6	11.4	13.2
L/min	0	40	70	100	130	160	190	220
US.GPM	0	10.6	18.5	26.4	34.3	42.3	50.2	58.1
H	m	77	65	57	49	42	32	20	7
DEYEB 4 2200- 14-140
Q	m³/h	0	2.4	4.2	6.0	7.8	9.6	11.4	13.2
L/min	0	40	70	100	130	160	190	220
US.GPM	0	10.6	18.5	26.4	34.3	42.3	50.2	58.1
H	m	140	115	96	79	65	47	28	9

4"AC/DC Stainless SteelImpeller Solar Water Pump

DEYEB 4 1100- 6-130
Q	m³/h	0	1.2	1.8	2.4	3.0	3.9	4.8	5.7
L/min	0	20	30	40	50	65	80	95
US.GPM	0	5.3	7.9	10.6	13.2	17.2	21.1	25.1
H	m	130	114	100	86	76	60	42	18
4C1500/SC4.8-255
Q	m³/h	0	1.2	1.8	2.4	3.0	3.6	4.2	4.8
L/min	0	20	30	40	50	60	70	80
US.GPM	0	5.3	7.9	10.6	13.2	15.9	18.5	21.1
H	m	255	172	138	105	82	66	48	20
DEYEB 4 2200- 6-320
Q	m³/h	0	1.2	1.8	2.4	3.0	3.9	4.8	5.7
L/min	0	20	30	40	50	65	80	95
US.GPM	0	5.3	7.9	10.6	13.2	17.2	21.1	25.1
H	m	320	265	206	173	150	108	60	20

4"AC/DC Stainless SteelImpeller Solar Water Pump

DEYEB 4 1500- 11-78
Q	m³/h	0	2.4	3.6	4.8	6.0	7.2	9.0	10.8
L/min	0	40	60	80	100	120	150	180
US.GPM	0	10.6	15.9	21.1	26.4	31.7	39.6	47.6
H	m	78	71	65	57	48	40	26	8
DEYEB 4 2200- 11-157
Q	m³/h	0	2.4	3.6	4.8	6.0	7.2	9.0	10.8
L/min	0	40	60	80	100	120	150	180
US.GPM	0	10.6	15.9	21.1	26.4	31.7	39.6	47.6
H	m	157	140	118	96	84	65	36	11

4"AC/DC Stainless SteelImpeller Solar Water Pump

DEYEB 4 1500- 17-44
Q	m³/h	0	2.4	4.8	7.2	9.6	12.0	14.4	16.8
L/min	0	40	80	120	160	200	240	280
US.GPM	0	10.6	21.1	31.7	42.3	52.8	63.4	74.0
H	m	44	42	38	34	28	21	12	4
DEYEB 4 2200- 20-77
Q	m³/h	0	3.6	6.0	8.4	10.8	13.2	15.6	18.0
L/min	0	60	100	140	180	220	260	300
US.GPM	0	15.9	26.4	37.0	47.6	58.1	68.7	79.3
H	m	77	72	67	55	47	38	27	13

4"AC/DC Stainless SteelImpeller Solar Water Pump

DEYEB 4 1500- 27-31
Q	m³/h	0	4.8	8.4	12.0	15.6	19.2	22.8	26.4
L/min	0	80	140	200	260	320	380	440
US.GPM	0	21.1	37.0	52.8	68.7	84.5	100.4	116.2
H	m	31	29	26	21	15	12	7	2
DEYEB 4 2200- 27-48
Q	m³/h	0	4..8	8.4	12.0	15.6	19.2	22.8	26.4
L/min	0	80	140	200	260	320	380	440
US.GPM	0	21.1	37.0	52.8	68.7	84.5	100.4	116.2
H	m	48	46	41	36	28	21	12	4

4"AC/DC Stainless SteelImpeller Solar Water Pump

4/6B1500/SC39-26
Q	m³/h	0	7.2	12.0	16.8	21.6	26.4	31.2	36.0
L/min	0	120	200	280	360	440	520	600
US.GPM	0	31.7	52.8	74.0	95.1	116.2	137.4	158.5
H	m	26	21	18	16	13	11	9	5
4/6A2200/SC39-51
Q	m³/h	0	7.25	12.0	16.8	21.6	26.4	31.2	36.0
L/min	0	120	200	280	360	440	520	600
US.GPM	0	31.7	52.8	74.0	95.1	116.2	137.4	158.5
H	m	51	38	33	29	25	19	14	11
