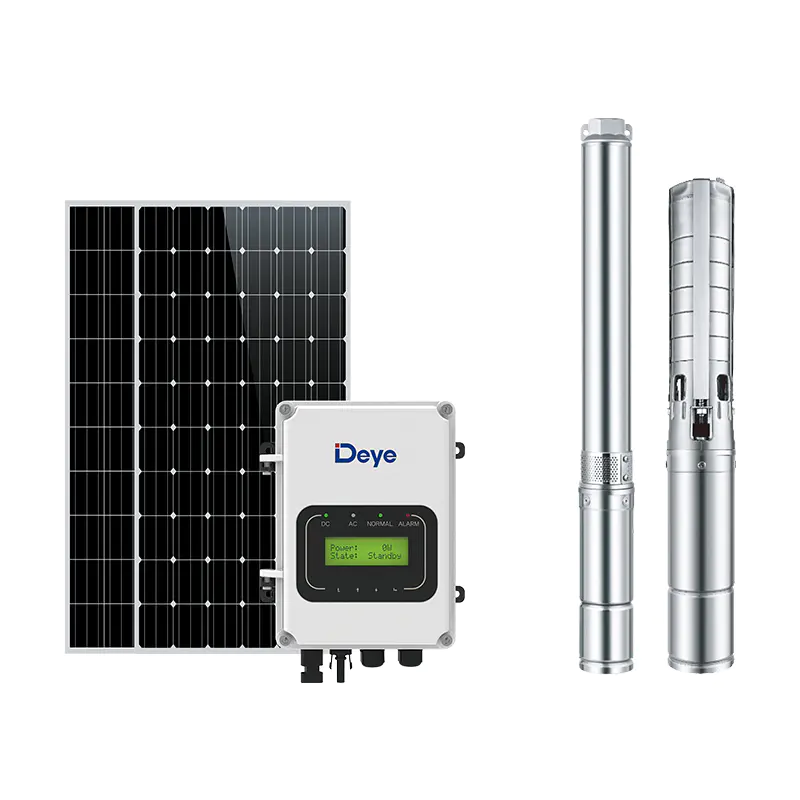

DEYEB WP-4-DC

4-inch DC solar submersible water pump

Solar Water Pumps4" DC

Request a price

Technical specifications

Technical data

4"DC PLASTIC IMPELLER SOLAR WATER PUMP
Pump Model	Power	Max.Flow (m³/h)	Max.Head(m)	Outlet (Inch)	Control Model
W	HP
DEYEB 4 750- 6-55	750	1	6	55	1.25"/1.5"	DYF-900DC
DEYEB 4 1500- 6-135	1500	2	135	DYD-1500DC
DEYEB 4 1500- 13-60	1500	2	13	60	2"
4"DC STAINLESS STEEL IMPELLER SOLAR WATER PUMP
Pump Model	Power	Max.Flow (m³/h)	Max.Head(m)	Outlet (Inch)	Control Model
W	HP
4F750/SC5.2-70	750	1	5.2	70	1.25"	DYF-900DC
4D1500/SC4.8-203	1500	2	4.8	203	DYD-1500DC
DEYEB 4 1500- 11-60	1500	2	11	60	1.5"
DEYEB 4 1500- 19-35	1500	2	19	35	2"
DEYEB 4 1500- 25-26	1500	2	25	26
4/6D1500/SC36-22	1500	2	35	22	3"

4"DC Plastic Impeller Solar Water Pump

DEYEB 4 750- 6-55
Q	m³/h	0	1.2	2.4	3.0	3.6	4.2	4.8	5.8
L/min	0	20	40	50	60	70	80	96
US.GPM	0	5.3	10.6	13.2	15.9	18.5	21.1	25.4
H	m	55	52	48	42	37	32	28	16
DEYEB 4 1500- 6-135
Q	m³/h	0	1.2	2.4	3.0	3.6	4.2	4.8	5.8
L/min	0	20	40	50	60	70	80	96
US.GPM	0	5.3	10.6	13.2	15.9	18.5	21.1	25.4
H	m	135	129	115	105	87	72	57	21

4"DC PlasticImpeller Solar Water Pump

DEYEB 4 1500- 13-60
Q	m³/h	0	1.2	3.0	4.8	6.6	8.4	10.2	12.0
L/min	0	20	50	80	110	140	170	200
US.GPM	0	5.3	13.2	21.1	29.1	37.0	44.9	52.8
H	m	60	58	53	49	40	31	24	10

4"DC Stainless Steel Impeller Solar Water Pump

4F750/SC5.2-70
Q	m³/h	0	1.2	1.8	2.4	3.0	3.6	4.2	4.8
L/min	0	20	30	40	50	60	70	80
US.GPM	0	5.3	7.9	10.6	13.2	15.9	18.5	21.1
H	m	70	63	59	50	42	33	25	14
4D1500/SC4.8-203
Q	m³/h	0	1.2	1.8	2.4	3.0	3.6	4.2	4.8
L/min	0	20	30	40	50	60	70	80
US.GPM	0	5.3	7.9	10.6	13.2	15.9	18.5	21.1
H	m	203	182	166	150	135	106	75	42

4"DC Stainless SteelImpeller Solar Water Pump

DEYEB 4 1500- 11-60
Q	m³/h	0	2.4	3.6	4.8	6.0	7.2	9.0	10.8
L/min	0	40	60	80	100	120	150	180
US.GPM	0	10.6	15.9	21.1	26.4	31.7	39.6	47.6
H	m	60	58	54	49	43	33	22	7

4"DC Stainless SteelImpeller Solar Water Pump

DEYEB 4 1500- 19-35
Q	m³/h	0	3.6	6.0	8.4	10.8	13.2	15.6	18.0
L/min	0	60	100	140	180	220	260	300
US.GPM	0	15.9	26.4	37.0	47.6	58.1	68.7	79.3
H	m	35	32	30	27	22	15	8	3

4"DC Stainless SteelImpeller Solar Water Pump

DEYEB 4 1500- 25-26
Q	m³/h	0	6.0	9.0	12.0	15.0	18.0	21.0	24.0
L/min	0	100	150	200	250	300	350	400
US.GPM	0	26.4	39.6	52.8	66.0	79.3	92.5	105.7
H	m	26	24	23	19	158	12	8	3

4"DC Stainless SteelImpeller Solar Water Pump

4/6D1500/SC35-22
Q	m³/h	0	6.0	12.0	15.0	18.0	21.0	24.0	30.0
L/min	0	100	200	250	300	350	400	500
US.GPM	0	26.4	52.8	66.0	79.3	92.5	105.7	132.1
H	m	22	21	19	16	14	12	10	5

4"DC Stainless SteelImpeller Solar Water Pump

4/6D1500/SC36-22
Q	m³/h	0	6.0	12.0	15.0	18.0	21.0	24.0	30.0
L/min	0	100	200	250	300	350	400	500
US.GPM	0	26.4	52.8	66.0	79.3	92.5	105.7	132.1
H	m	22	21	19	26	24	12	10	5
