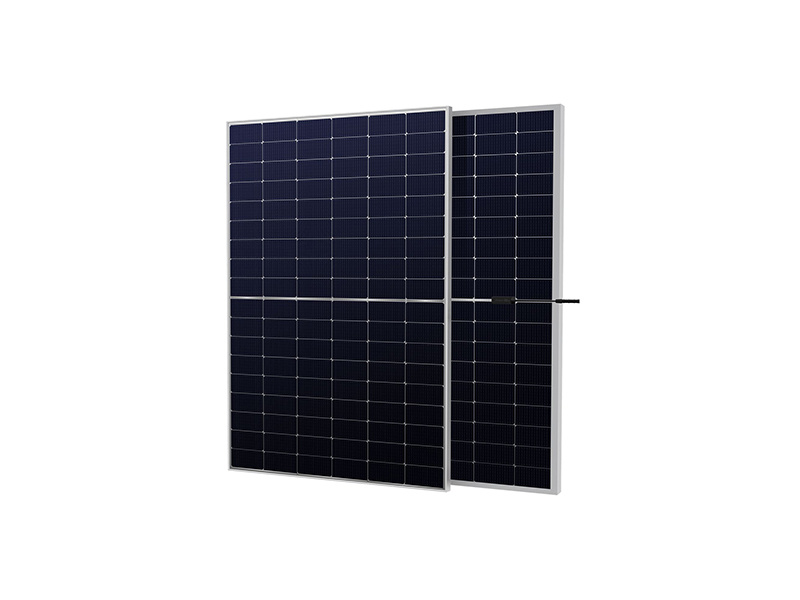

DEYEB PV-655W-156B

N-type TOPCon · 156 half-cut cells · bifacial dual glass

C&I & Utility Panels635–655 W
Request a price

Technical specifications

Electrical Characteristics at STC

ParameterDEYEB PV-655W-156B/ADEYEB PV-655W-156B/BDEYEB PV-655W-156B/CDEYEB PV-655W-156B/DDEYEB PV-655W-156B/E
Maximum Power (Pmax)635W640W645W650W655W
Power Tolerance0~+5W0~+5W0~+5W0~+5W0~+5W
Module Efficiency22.72%22.90%23.07%23.25%23.43%
Maximum Power Current (Imp)13.27A13.33A13.39A13.45A13.51A
Maximum Power Voltage (Vmp)47.86V48.02V48.17V48.33V48.48V
Short Circuit Current (Isc)13.92A13.98A14.04A14.10A14.16A
Open Circuit Voltage (Voc)57.76V57.89V58.02V58.15V58.28V

Mechanical & General Characteristics

ParameterDEYEB PV-655W-156B/ADEYEB PV-655W-156B/BDEYEB PV-655W-156B/CDEYEB PV-655W-156B/DDEYEB PV-655W-156B/E
Cell TypeMono N-Type,156(6×26) Half-Cut cellsMono N-Type,156(6×26) Half-Cut cellsMono N-Type,156(6×26) Half-Cut cellsMono N-Type,156(6×26) Half-Cut cellsMono N-Type,156(6×26) Half-Cut cells
Glass2mm+2mm,High Transmission,Low Iron,Semi-tempered glass2mm+2mm,High Transmission,Low Iron,Semi-tempered glass2mm+2mm,High Transmission,Low Iron,Semi-tempered glass2mm+2mm,High Transmission,Low Iron,Semi-tempered glass2mm+2mm,High Transmission,Low Iron,Semi-tempered glass
FrameAnodized Aluminum AlloyAnodized Aluminum AlloyAnodized Aluminum AlloyAnodized Aluminum AlloyAnodized Aluminum Alloy
Junction BoxIP68 RatedIP68 RatedIP68 RatedIP68 RatedIP68 Rated
Dimension2465x1134x30mm2465x1134x30mm2465x1134x30mm2465x1134x30mm2465x1134x30mm
Output Cable35kg35kg35kg35kg35kg
Weight35kg35kg35kg35kg35kg
ConnectorMC4 CompatibleMC4 CompatibleMC4 CompatibleMC4 CompatibleMC4 Compatible
Container40' HQ40' HQ40' HQ40' HQ40' HQ
Pallets per Container1616161616
Pieces per Container592592592592592
Fire PerformanceIEC Class CIEC Class CIEC Class CIEC Class CIEC Class C
Maximum System Voltage1500VDC1500VDC1500VDC1500VDC1500VDC
Maximum Series Fuse Rating30A30A30A30A30A
