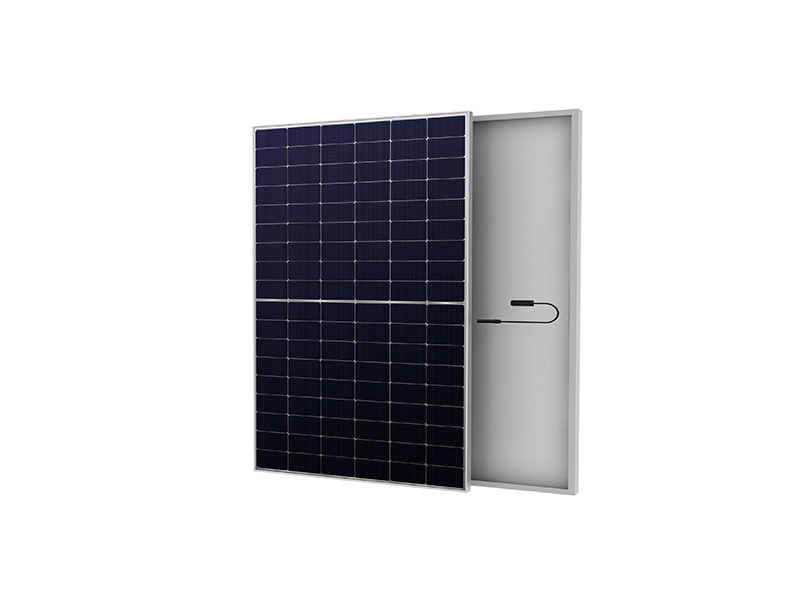

DEYEB PV-650W-156M

N-type TOPCon · 156 half-cut cells · monofacial

C&I & Utility Panels630–650 W
Request a price

Technical specifications

Electrical Characteristics at STC

ParameterDEYEB PV-650W-156M/ADEYEB PV-650W-156M/BDEYEB PV-650W-156M/CDEYEB PV-650W-156M/DDEYEB PV-650W-156M/E
Maximum Power (Pmax)630W635W640W645W650W
Power Tolerance0~+5W0~+5W0~+5W0~+5W0~+5W
Module Efficiency22.54%22.72%22.90%23.07%23.25%
Maximum Power Current (Imp)13.32A13.38A13.44A13.50A13.56A
Maximum Power Voltage (Vmp)47.30V47.46V47.62V47.78V47.94V
Short Circuit Current (Isc)13.98A14.04A14.10A14.16A14.22A
Open Circuit Voltage (Voc)57.45V57.60V57.75V57.90V58.05V

Electrical Characteristics at NOCT

ParameterDEYEB PV-650W-156M/ADEYEB PV-650W-156M/BDEYEB PV-650W-156M/CDEYEB PV-650W-156M/DDEYEB PV-650W-156M/E
Maximum Power (Pmax)473W477W481W485W488W
Maximum Power Current (Imp)10.76A10.81A10.86A10.90A10.95A
Maximum Power Voltage (Vmp)43.99V44.14V44.29V44.43V44.58V
Short Circuit Current (Isc)11.32A11.38A11.44A11.50A11.56A
Open Circuit Voltage (Voc)54.00V54.14V54.29V54.43V54.57V

Mechanical & General Characteristics

ParameterDEYEB PV-650W-156M/ADEYEB PV-650W-156M/BDEYEB PV-650W-156M/CDEYEB PV-650W-156M/DDEYEB PV-650W-156M/E
Cell TypeMono N-Type,156(6×24) Half-Cut cellsMono N-Type,156(6×24) Half-Cut cellsMono N-Type,156(6×24) Half-Cut cellsMono N-Type,156(6×24) Half-Cut cellsMono N-Type,156(6×24) Half-Cut cells
Glass3.2mm,High Transmission,Low Iron,Tempered glass3.2mm,High Transmission,Low Iron,Tempered glass3.2mm,High Transmission,Low Iron,Tempered glass3.2mm,High Transmission,Low Iron,Tempered glass3.2mm,High Transmission,Low Iron,Tempered glass
FrameAnodized Aluminum AlloyAnodized Aluminum AlloyAnodized Aluminum AlloyAnodized Aluminum AlloyAnodized Aluminum Alloy
Junction BoxIP68 RatedIP68 RatedIP68 RatedIP68 RatedIP68 Rated
Dimension2465x1134x35mm2465x1134x35mm2465x1134x35mm2465x1134x35mm2465x1134x35mm
Output Cable4mm2(EU),+200mm,-300mm or Customized4mm2(EU),+200mm,-300mm or Customized4mm2(EU),+200mm,-300mm or Customized4mm2(EU),+200mm,-300mm or Customized4mm2(EU),+200mm,-300mm or Customized
Weight30kg30kg30kg30kg30kg
ConnectorMC4 CompatibleMC4 CompatibleMC4 CompatibleMC4 CompatibleMC4 Compatible
Container40' HQ40' HQ40' HQ40' HQ40' HQ
Pallets per Container1616161616
Pieces per Container496496496496496
Fire PerformanceIEC Class CIEC Class CIEC Class CIEC Class CIEC Class C
Maximum System Voltage1500VDC1500VDC1500VDC1500VDC1500VDC
Maximum Series Fuse Rating30A30A30A30A30A
