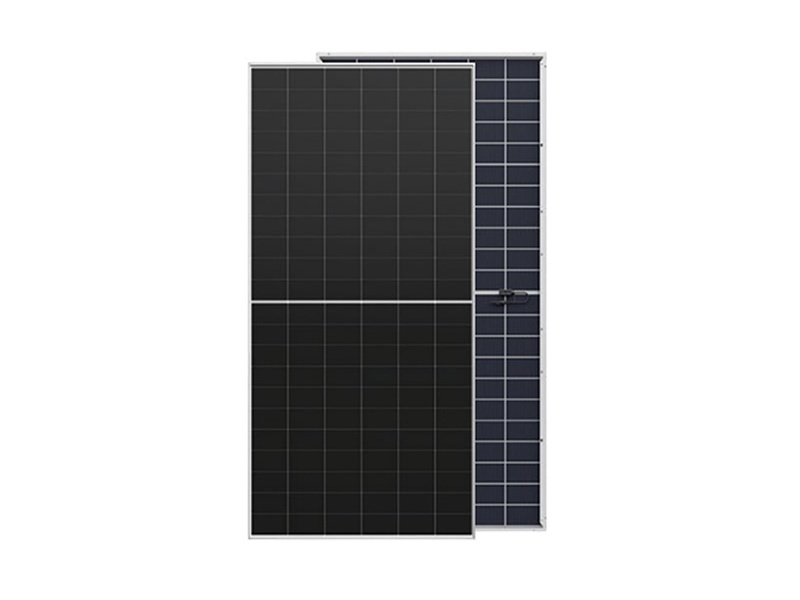

Deyeb DEYEB PV-630W-M c&i & utility panels
← Back to catalogue

DEYEB PV-630W-M

N-type IBC · half-cut cells · monofacial

C&I & Utility Panels605–630 W
Request a price

Technical specifications

Electrical Characteristics at STC

ParameterDEYEB PV-630W-M/ADEYEB PV-630W-M/BDEYEB PV-630W-M/CDEYEB PV-630W-M/DDEYEB PV-630W-M/EDEYEB PV-630W-M/F
Maximum Power (Pmax)605W610W615W620W625W630W
Power Tolerance0~+5W0~+5W0~+5W0~+5W0~+5W0~+5W
Module Efficiency23.42%23.61%23.81%24.00%24.19%24.39%
Maximum Power Current (Imp)13.52A13.60A13.68A13.76A13.84A13.92A
Maximum Power Voltage (Vmp)44.78V44.88V44.98V45.08V45.18V45.28V
Short Circuit Current (Isc)14.28A14.36A14.44A14.52A14.60A14.68A
Open Circuit Voltage (Voc)54.09V54.19V54.29V54.39V54.49V54.59V

Electrical Characteristics at NOCT

ParameterDEYEB PV-630W-M/ADEYEB PV-630W-M/BDEYEB PV-630W-M/CDEYEB PV-630W-M/DDEYEB PV-630W-M/EDEYEB PV-630W-M/F
Maximum Power (Pmax)456W459W463W467W471W474W
Maximum Power Current (Imp)10.79A10.85A10.91A10.98A11.04A11.11A
Maximum Power Voltage (Vmp)42.29V42.38V42.48V42.54V42.67V42.76V
Short Circuit Current (Isc)11.55A11.61A11.68A11.74A11.81A11.87A
Open Circuit Voltage (Voc)51.08V51.18V51.27V51.36V51.46V51.55V

Mechanical & General Characteristics

ParameterDEYEB PV-630W-M/ADEYEB PV-630W-M/BDEYEB PV-630W-M/CDEYEB PV-630W-M/DDEYEB PV-630W-M/EDEYEB PV-630W-M/F
Glass3.2mm,High Transmission,Low Iron,tempered glass3.2mm,High Transmission,Low Iron,tempered glass3.2mm,High Transmission,Low Iron,tempered glass3.2mm,High Transmission,Low Iron,tempered glass3.2mm,High Transmission,Low Iron,tempered glass3.2mm,High Transmission,Low Iron,tempered glass
Junction Box2278x1134x302278x1134x302278x1134x302278x1134x302278x1134x302278x1134x30
Dimension2278x1134x302278x1134x302278x1134x302278x1134x302278x1134x302278x1134x30
Output Cable4mm2(EU),+200mm,-300mm or Customized4mm2(EU),+200mm,-300mm or Customized4mm2(EU),+200mm,-300mm or Customized4mm2(EU),+200mm,-300mm or Customized4mm2(EU),+200mm,-300mm or Customized4mm2(EU),+200mm,-300mm or Customized
Weight27kg27kg27kg27kg27kg27kg
ConnectorMC4 CompatibleMC4 CompatibleMC4 CompatibleMC4 CompatibleMC4 CompatibleMC4 Compatible
Container40' HQ40' HQ40' HQ40' HQ40' HQ40' HQ
Pallets per Container202020202020
Pieces per Container720720720720720720
Maximum Series Fuse Rating25A25A25A25A25A25A
