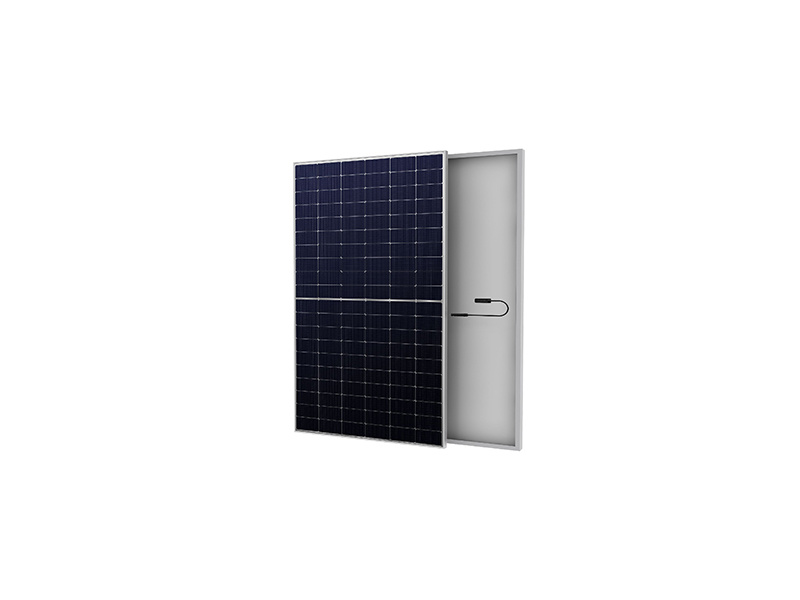

DEYEB PV-500W-120M

N-type TOPCon · 120 half-cut cells · monofacial

Residential Panels480–500 W
Request a price

Technical specifications

Electrical Characteristics at STC

ParameterDEYEB PV-500W-120M/ADEYEB PV-500W-120M/BDEYEB PV-500W-120M/CDEYEB PV-500W-120M/DDEYEB PV-500W-120M/E
Maximum Power (Pmax)480W485W490W495W500W
Power Tolerance0~+5W0~+5W0~+5W0~+5W0~+5W
Module Efficiency22.24%22.47%22.71%22.94%23.17%
Maximum Power Current (Imp)13.31A13.38A13.45A13.52A13.59A
Maximum Power Voltage (Vmp)36.06V36.25V36.43V36.61V36.79V
Short Circuit Current (Isc)13.85A13.93A14.01A14.09A14.17A
Open Circuit Voltage (Voc)43.99V44.20V44.40V44.60V44.80V

Electrical Characteristics at NOCT

ParameterDEYEB PV-500W-120M/ADEYEB PV-500W-120M/BDEYEB PV-500W-120M/CDEYEB PV-500W-120M/DDEYEB PV-500W-120M/E
Maximum Power (Pmax)361W364W368W372W376W
Maximum Power Current (Imp)10.75A10.81A10.86A10.92A10.98A
Maximum Power Voltage (Vmp)33.54V33.71V33.88V34.05V34.22V
Short Circuit Current (Isc)11.27A11.33A11.39A11.46A11.52A
Open Circuit Voltage (Voc)41.35V41.55V41.74V41.92V42.11V

Mechanical & General Characteristics

ParameterDEYEB PV-500W-120M/ADEYEB PV-500W-120M/BDEYEB PV-500W-120M/CDEYEB PV-500W-120M/DDEYEB PV-500W-120M/E
Cell TypeMono N-Type,120(6×20) Half-Cut cellsMono N-Type,120(6×20) Half-Cut cellsMono N-Type,120(6×20) Half-Cut cellsMono N-Type,120(6×20) Half-Cut cellsMono N-Type,120(6×20) Half-Cut cells
Glass3.2mm,High Transmission,Low Iron,tempered glass3.2mm,High Transmission,Low Iron,tempered glass3.2mm,High Transmission,Low Iron,tempered glass3.2mm,High Transmission,Low Iron,tempered glass3.2mm,High Transmission,Low Iron,tempered glass
FrameAnodized Aluminum AlloyAnodized Aluminum AlloyAnodized Aluminum AlloyAnodized Aluminum AlloyAnodized Aluminum Alloy
Junction BoxIP68 RatedIP68 RatedIP68 RatedIP68 RatedIP68 Rated
Dimension1903x1134x30mm1903x1134x30mm1903x1134x30mm1903x1134x30mm1903x1134x30mm
Output Cable4mm2(EU),+200mm,-300mm or Customized4mm2(EU),+200mm,-300mm or Customized4mm2(EU),+200mm,-300mm or Customized4mm2(EU),+200mm,-300mm or Customized4mm2(EU),+200mm,-300mm or Customized
Weight23.6kg23.6kg23.6kg23.6kg23.6kg
ConnectorMC4 CompatibleMC4 CompatibleMC4 CompatibleMC4 CompatibleMC4 Compatible
Container40' HQ40' HQ40' HQ40' HQ40' HQ
Pallets per Container2424242424
Pieces per Container©2026 Renesola Co.,Ltd. All rights reserved. subject©2026 Renesola Co.,Ltd. All rights reserved. subject©2026 Renesola Co.,Ltd. All rights reserved. subject©2026 Renesola Co.,Ltd. All rights reserved. subject©2026 Renesola Co.,Ltd. All rights reserved. subject
Fire PerformanceIEC Class CIEC Class CIEC Class CIEC Class CIEC Class C
Maximum System Voltage1500VDC1500VDC1500VDC1500VDC1500VDC
Maximum Series Fuse Rating25A25A25A25A25A
