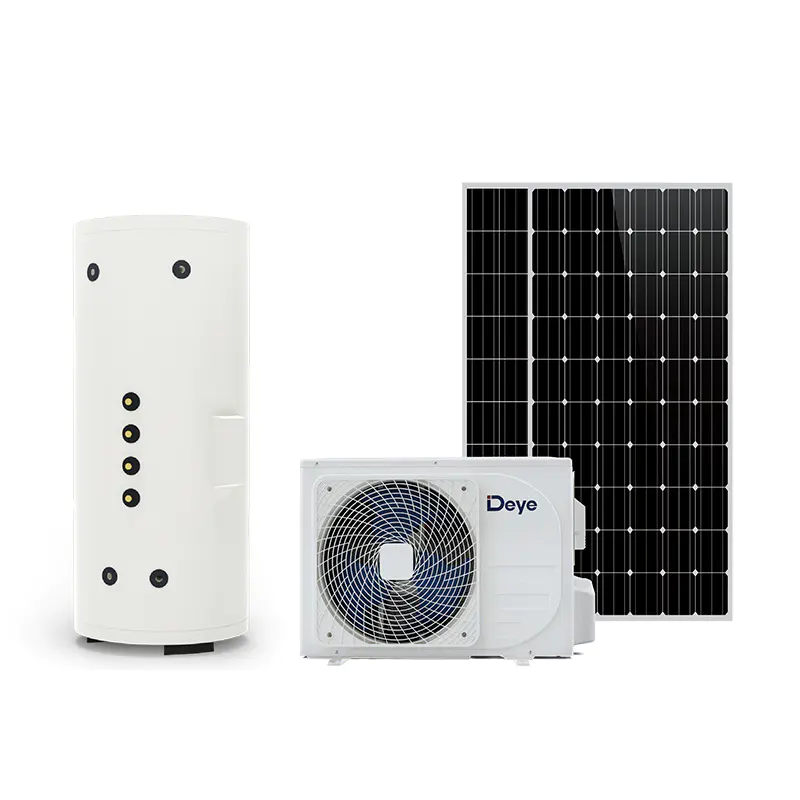

DEYEB HP-WH
Hybrid AC/DC solar air-source water heater
Solar Heat Pumps & Water HeatingHot water
Request a priceTechnical specifications
Technical data
| Parameter | UNIT | DEYEB 41/300 | |
|---|---|---|---|
| Power supply（ACDC） | Power AC | Ph-V-Hz | 208-240V/50-60Hz |
| Voc | V | 80V-380V | |
| Isc | A | </=14A | |
| Suggested Solar Panel （400-500W） | PCS | 3 | |
| Electric Shock Prevention | / | Class I | |
| Water Heating 15℃ to 55℃ | L/H | 88.1 | |
| Heating Capacity | W | 4100 | |
| Rated Power Consumption | W | 972 | |
| Rated Current | A | 4.5 | |
| COP | W/W | 4.22 | |
| Water Tank Volume | L | 300 | |
| Water Inlet/Outlet Connector Size | / | DN20 | |
| Heat Exchanger Max. Pressure | MPa | 4.4 | |
| Max Discharge/Suction Pressure | MPa | 4.4/1.8 | |
| Water Tank | Dimension | mm | Φ580×1810 |
| Packing(W×H×D) | mm | 605\*605\*1915 | |
| Outdoor unit | Dimension(W×H×D) | mm | 802\*323\*564mm |
| Packing(W×H×D) | mm | 910\*405\*622mm |
