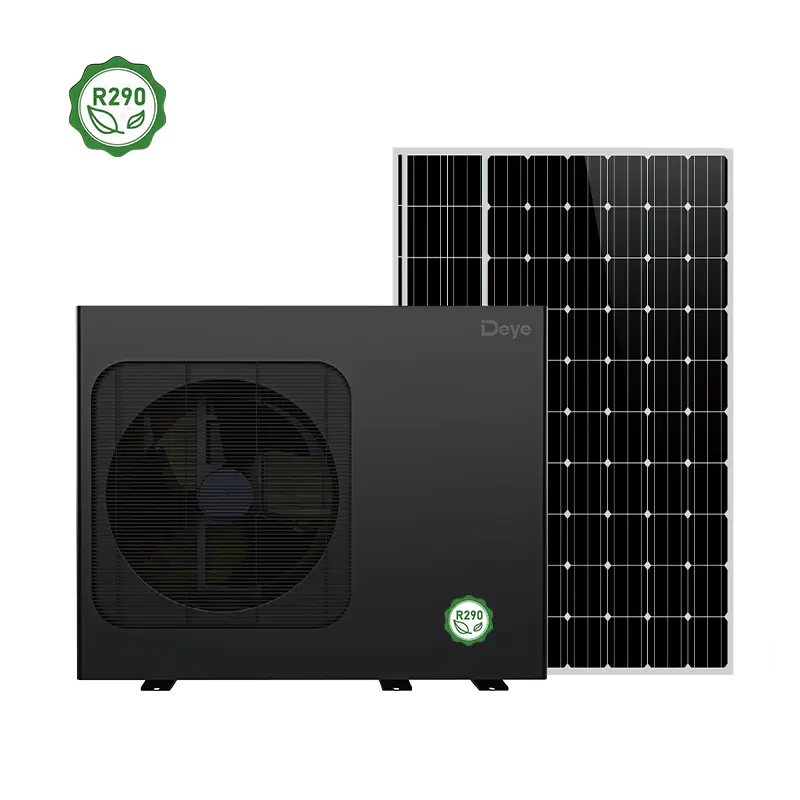

DEYEB HP-MB
Hybrid AC/DC solar heat pump monoblock, heating and cooling
Solar Heat Pumps & Water HeatingR290 monoblock
Request a priceTechnical specifications
Technical data
| Parameter | 4kW | 6kW | 8kW | 10kW | 12kW | 14kW | 16kW | 12kW | 14kW | 16kW | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DEYEB 04R3EP | DEYEB 06R3EP | DEYEB 08R3EP | DEYEB 10R3EP | DEYEB 12R3EP | DEYEB 14R3EP | DEYEB 16R3EP | DEYEB 12R3EP | DEYEB 14R3EP | DEYEB 16R3EP | |||
| Power supply AC | Power AC | V/Ph/H | AC 220-240/1/50 | AC 380-415/3/50 | ||||||||
| Power supply DC PV String Input Data | Voc | DC 80-410V | DC 80-410V | DC 80-410V | DC 200-750V | |||||||
| Isc | <=12A | <=20A | <=26A | <=13A | ||||||||
| No.of MPP Trackers | 1 | 1 | 2 | 2 | ||||||||
| No.of Strings per MPP Tracker | 1 | 2 | 2 | 1 | ||||||||
| Cooling（A35W18) | Capacity | kW | 4.5 | 6.5 | 8.3 | 10.0 | 12.0 | 14.0 | 16.0 | 12.0 | 14.0 | 16.0 |
| EER | 5.5 | 5.1 | 5.15 | 4.75 | 4.5 | 4.2 | 3.9 | 4.5 | 4.2 | 3.9 | ||
| Cooling5（A35W7) | Capacity | kW | 4.7 | 6.8 | 7.5 | 8.9 | 11.5 | 12.7 | 14.0 | 11.5 | 12.7 | 14.0 |
| EER | 3.65 | 3.1 | 3.45 | 3.25 | 3.05 | 2.90 | 2.75 | 3.05 | 2.90 | 2.75 | ||
| Heating2(A7W35) | Capacity | kW | 4.5 | 6.2 | 8.4 | 10.0 | 12.0 | 14.0 | 15.0 | 12.0 | 14.0 | 15.0 |
| COP | 5.15 | 4.9 | 5.0 | 4.7 | 4.8 | 4.5 | 4.4 | 4.8 | 4.5 | 4.4 | ||
| Heating3(A7W45) | Capacity | kW | 4.50 | 6.4 | 8.2 | 10.0 | 12.0 | 14.0 | 15.0 | 12.0 | 14.0 | 15.0 |
| COP | 4.05 | 3.80 | 3.85 | 3.65 | 3.7 | 3.5 | 3.35 | 3.7 | 3.5 | 3.35 | ||
| Heating3(A7W55) | Capacity | kW | 4.6 | 6.2 | 7.8 | 9.5 | 12.0 | 14.0 | 15.0 | 12.0 | 14.0 | 15.0 |
| COP | 3.20 | 3.1 | 3.2 | 3.05 | 3.1 | 3.0 | 2.85 | 3.1 | 3.0 | 2.85 | ||
| Seasonal space heating | LWT at 35⁰C | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | |
| LWT at 55⁰C | A++ | A++ | A++ | A++ | A++ | A++ | A++ | A++ | A++ | A++ | ||
| Sound power level | Monobloc Unit | dB | 55 | 58 | 59 | 60 | 65 | 65 | 68 | 65 | 65 | 68 |
| Body dimensions | W×D×H | mm | 1130\*450\*710 | 1280\*450\*1040 | 1280\*450\*1040 | 1280\*450\*1040 | ||||||
| Packed dimensions | W×D×H | mm | 1205\*555\*870 | 1355\*545\*1210 | 1355\*545\*1210 | 1355\*545\*1210 | ||||||
| Net weight | Monobloc Unit | kg | 103 | 156 | 171 | 169 | ||||||
| Gross weight | Monobloc Unit | kg | 114 | 169 | 184 | 182 | ||||||
| Refrigerant | Type/GWP | R290/GWP3 | ||||||||||
| Operating | Cooling | ⁰C | -5 ~ 48 | |||||||||
| Heating | ⁰C | -25 ~ 35 | ||||||||||
| DHW(tank) | ⁰C | -25 ~ 43 | ||||||||||
| Setting water | Cooling | °C | 5 ~ 25 | |||||||||
| Heating | °C | 25 ~ 75 | ||||||||||
| DHW(tank) | °C | 20 ~ 70 | ||||||||||
| Water circuit | Piping connections | inch | G1''BSP | |||||||||
| Safety valve set pressure | MPa | 0.3 | ||||||||||
| Flow switch | m³/h | 0.36 | 0.6 | |||||||||
| Expansion tank Volume | L | 5 | ||||||||||
| Capacity of the back-up heater | kW | 3 | 3 | 9 | ||||||||
| 40H/40/20 | Unit | 117/78/36 | 68/33/16 |
