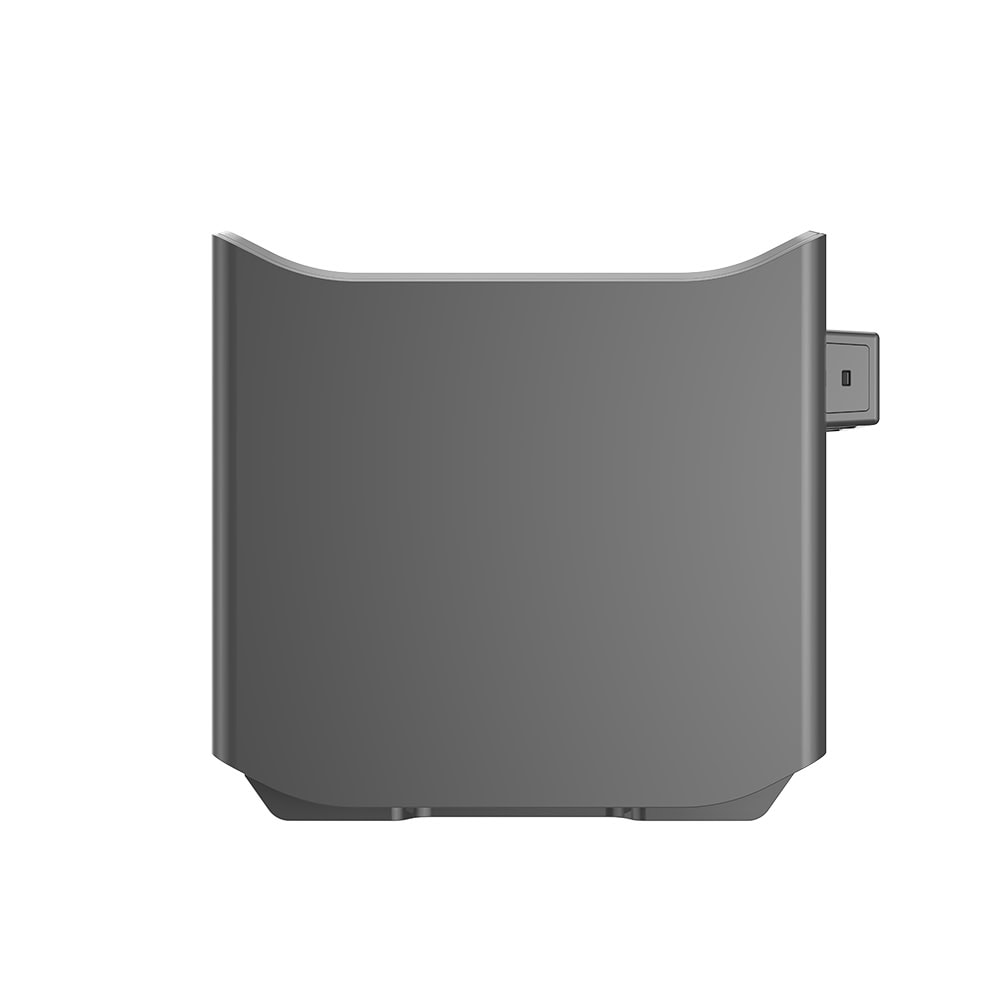

Deyeb DEYEB BT-LV-01 low-voltage battery storage
← Back to catalogue

DEYEB BT-LV-01

Low-voltage LiFePO4 battery storage

Low-Voltage Battery Storage1.28 kWh
Request a price

Technical specifications

Technical Specifications

ParameterBT-LV-01/ABT-LV-01/BBT-LV-01/C
Battery ChemistryLiFePO4LiFePO4LiFePO4
Nominal Capacity100Ah200 Ah100Ah
ScalabilityMax. 2-4 units in series ( 51.2V ) and Max. 10 units in parallelMax. 2-4 units in series ( 51.2V ) and Max. 10 units in parallelMax. 2-4 units in series ( 51.2V ) and Max. 10 units in parallel
Nominal Voltage12.8 V25.6 V25.6 V
Operating Voltage11.2 V ~ 14.6 V22.4V ~ 29.2V22.4V ~ 29.2V
Nominal Energy1.28 kWh2.56 kWh2.56 kWh
Weight Approximate11 kg21kg21kg
Dimension（W×H×D, mm）310 × 160 × 298471 × 160 × 348471 × 160 × 348
