DEYEB AC-W-HYB

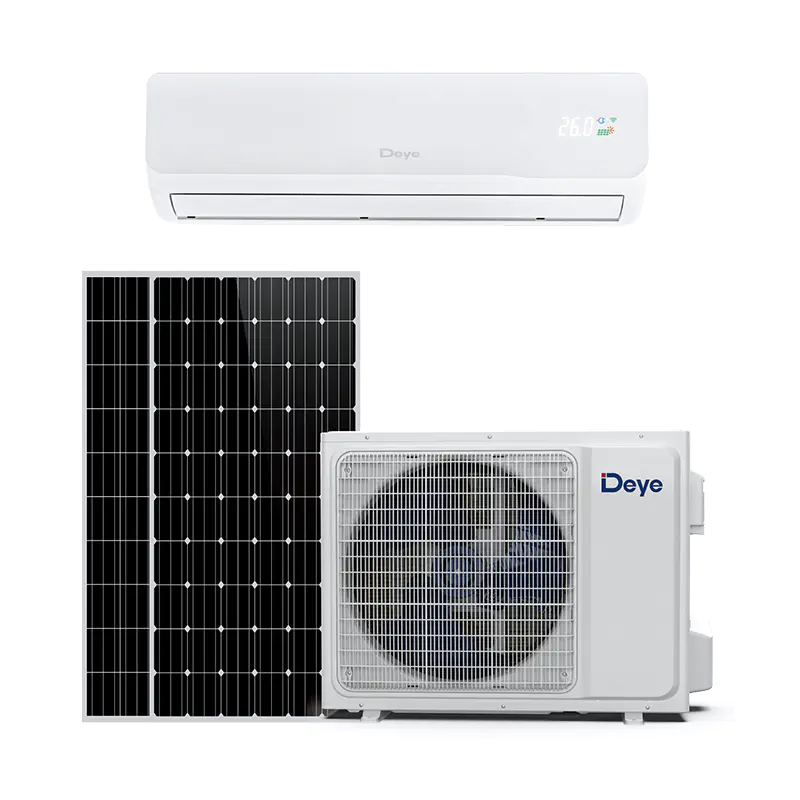

Wall-mounted hybrid AC/DC solar air conditioner
Solar Air Conditioning12 000–24 000 BTU
Request a priceTechnical specifications
ACDC R410A
| Parameter | Unit | 12000BTU | 18000BTU | 24000BTU |
|---|---|---|---|---|
| Solar Power Voltage | V | 80~380 | 80~380 | 80-380 |
| Grid Power Voltage | V/Hz | 208V~240V/50~60Hz | 208V~240V/50~60Hz | 208V~240V/50~60Hz |
| Cooling Capacity (T1) | BTU | 12000(3000-13300) | 17300(4100-20400) | 22000(6100-27000) |
| Cooling power input (T1) | W | 940(190-1270) | 1400(220-2100) | 1790(300~3200) |
| Heating Capacity | W | 3600(900-3960) | 5150(1500~5250) | 7000(1800-7200) |
| Heating power input | W | 940(180~1250) | 1260(250~1410) | 2030(340~2150) |
| EER | BTU/W | 12.76 | 12.36 | 12.29 |
| Indoor unit Dimension(WxHxD) | mm | 840x205x295 | 1080x330x237 | 1080x330x237 |
| Indoor unit Packing(WxHxD) | mm | 920x290x360 | 1140x300x382 | 1140x362x300 |
| Outdoor unit Dimension (WxHxD) | mm | 802x564x323 | 802x564x323 | 900x700x337 |
| Outdoor unit Packing (WxHxD) | mm | 910x622x405 | 910x622x405 | 1006x755x418 |
ACDC R32
| Parameter | Unit | 12000BTU | 18000BTU | 24000BTU |
|---|---|---|---|---|
| Solar Power Voltage | V | 80~380 | 80~380 | 80~380 |
| Grid Power Voltage | V/Hz | 208V~240V/50~60Hz | 208V~240V/50~60Hz | 208V~240V/50~60Hz |
| Cooling Capacity | W | 3500(800~3900) | 5010(1300~5850) | 6400(1800~7800) |
| Cooling power input | W | 860(150~1100) | 1250(220~1670) | 1690(340~2550) |
| Heating Capacity | W | 3500(900~4200) | 5010(1300~5200) | 7030(1800~7800) |
| Heating power input | W | 870(150~1200) | 1200(220~1420) | 1780(320~2190) |
| EER | W/W | 4.07 | 4.01 | 3.79 |
| Indoor unit Dimension (WxHxD) | mm | 840x205x295 | 1080x330x237 | 1080x330x237 |
| Indoor unit Packing (WxHxD) | mm | 920x290x360 | 1140x300x382 | 1140x362x300 |
| Outdoor unit Dimension (WxHxD) | mm | 802x564x323 | 802x564x323 | 900x700x337 |
| Outdoor unit Packing (WxHxD) | mm | 910x622x405 | 910x622x405 | 1006x755x418 |
